Professional Wine Equipment

Fermentation & Aging Integrated Clay Vessels

Handcrafted ceramic vessels with precision temperature control for exceptional winemaking

Brewing equipment from nature

Professional Vessel Architecture

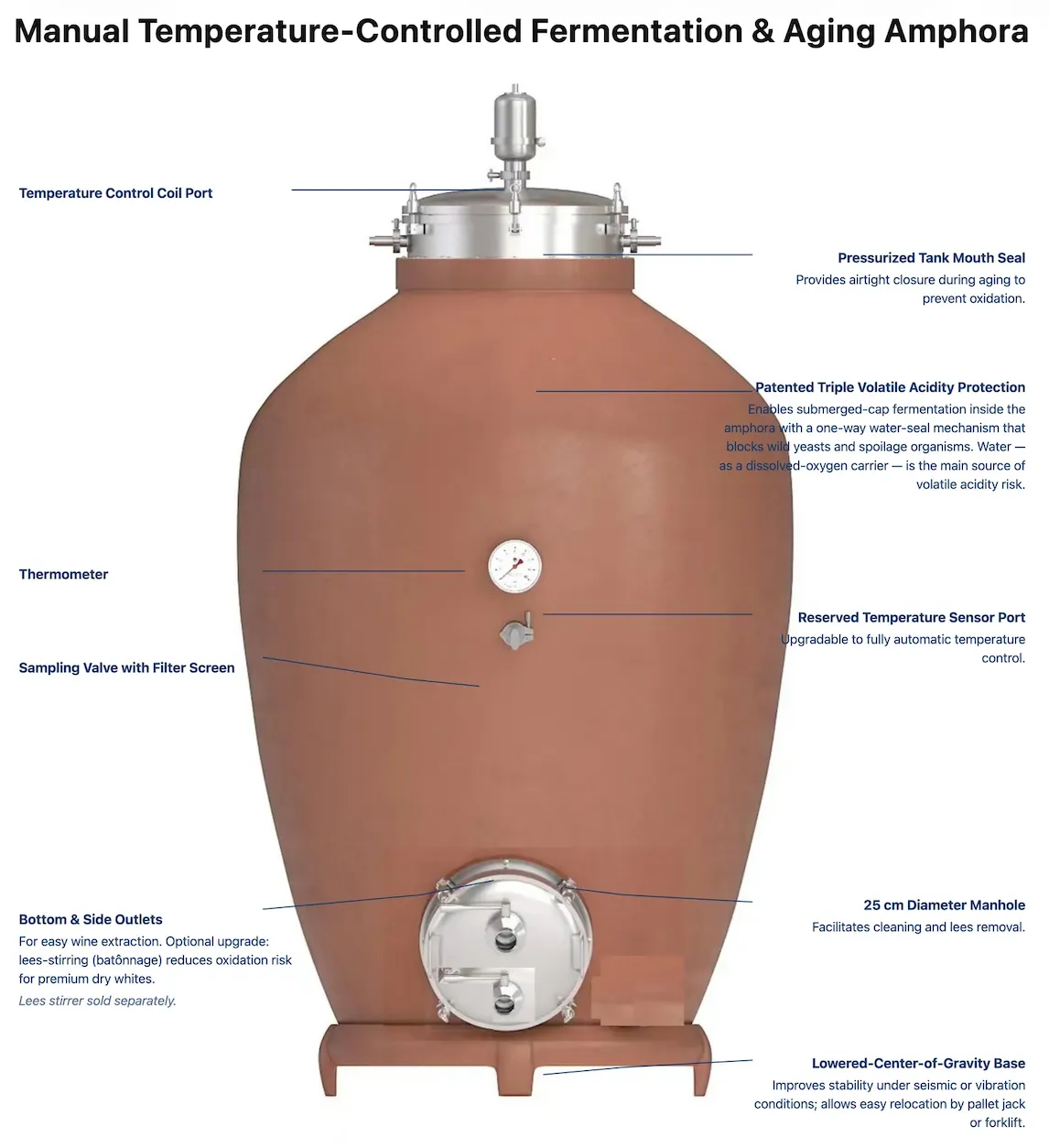

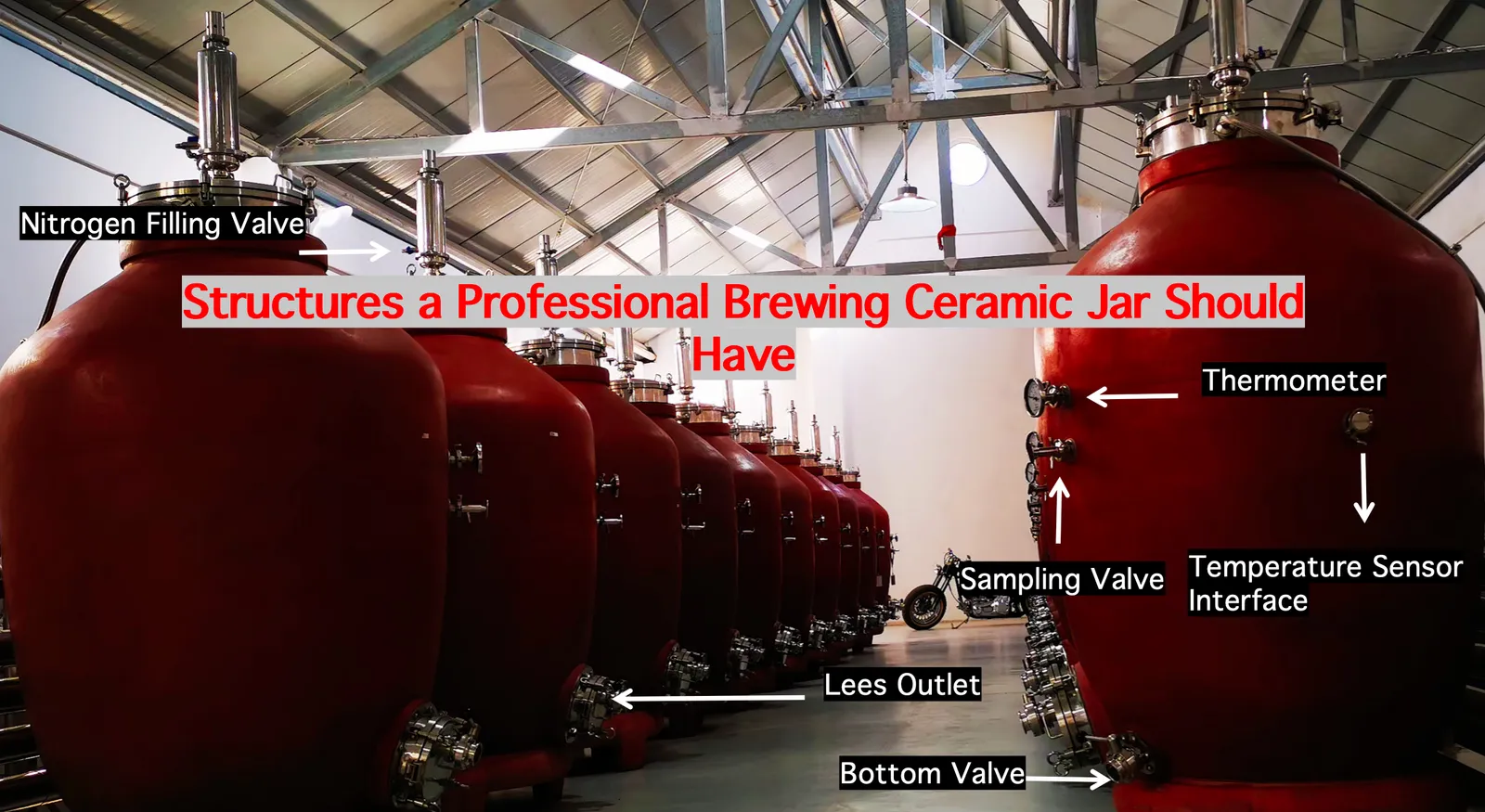

The Structure That a Professional Wine Clay Vessel Should Have

Vessel structure diagram 1
Vessel structure diagram 2

Temperature Control System

  • Temperature gauge display
  • Temperature sensor port
  • Stainless steel coil circulation system

Sampling System

  • Sampling valve
  • Bottom valve design
  • One-way valve control

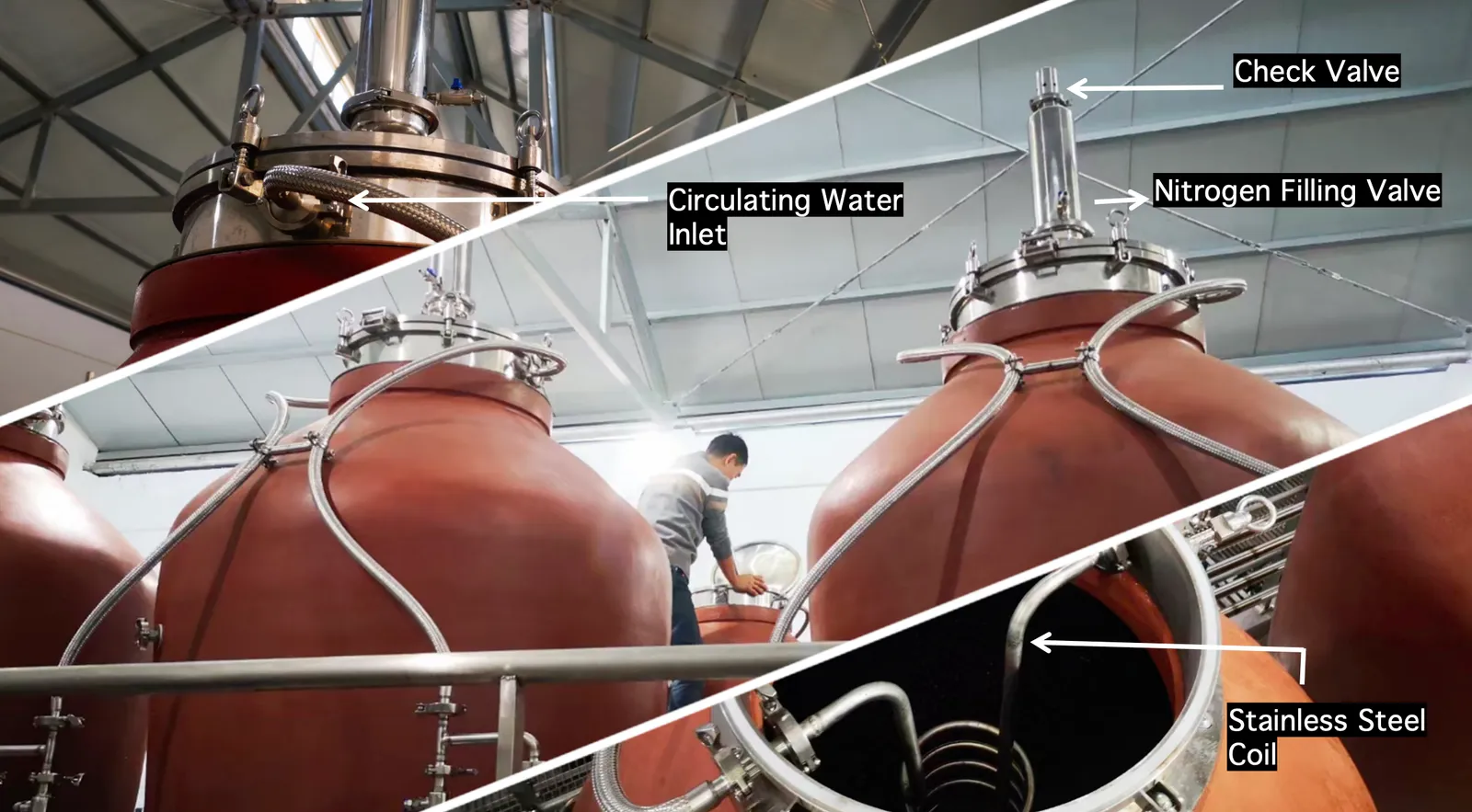

Gas Control

  • Nitrogen injection valve
  • Cooling water inlet
  • 25cm residue discharge port

Our Heritage

From Rongchang, one of China's four renowned purple clay regions

(Yixing, Rongchang, Qinzhou, Jianshui)

Centuries of Ceramic Expertise

Rongchang is China's earliest producer of 1000L large clay vessels, the designated supplier for top Chinese distilleries.

Optimal Iron Content

Our clay contains 7-8% iron, providing essential catalytic properties for wine development while preserving fruit aromas.

Regular Material Testing

Periodic inspections ensure zero heavy metals in our clay, guaranteeing wine safety and quality.

Controlled Micro-Oxygenation

We customize oxygen permeability for different wines, protecting and developing superior fruit characteristics.

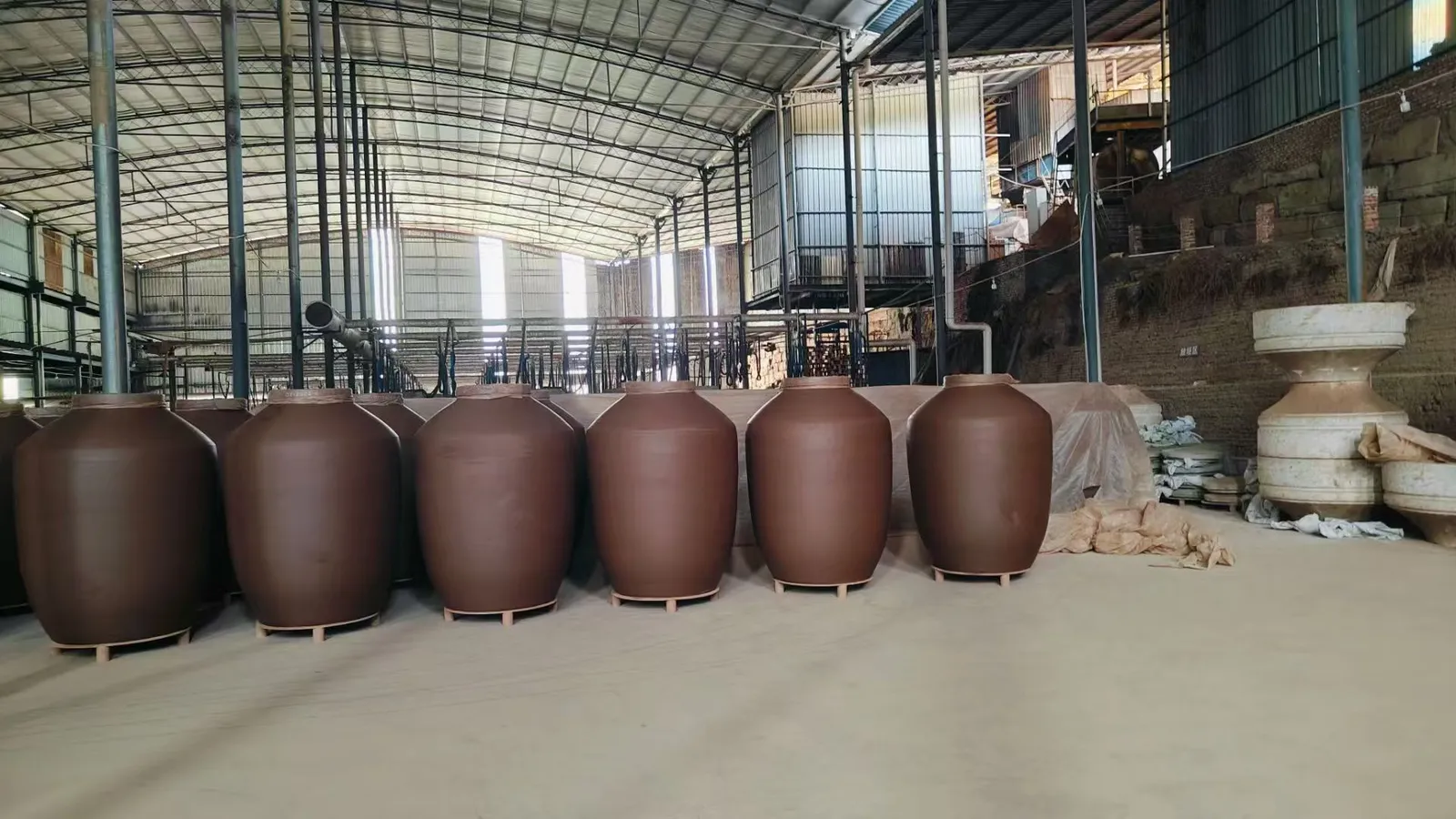

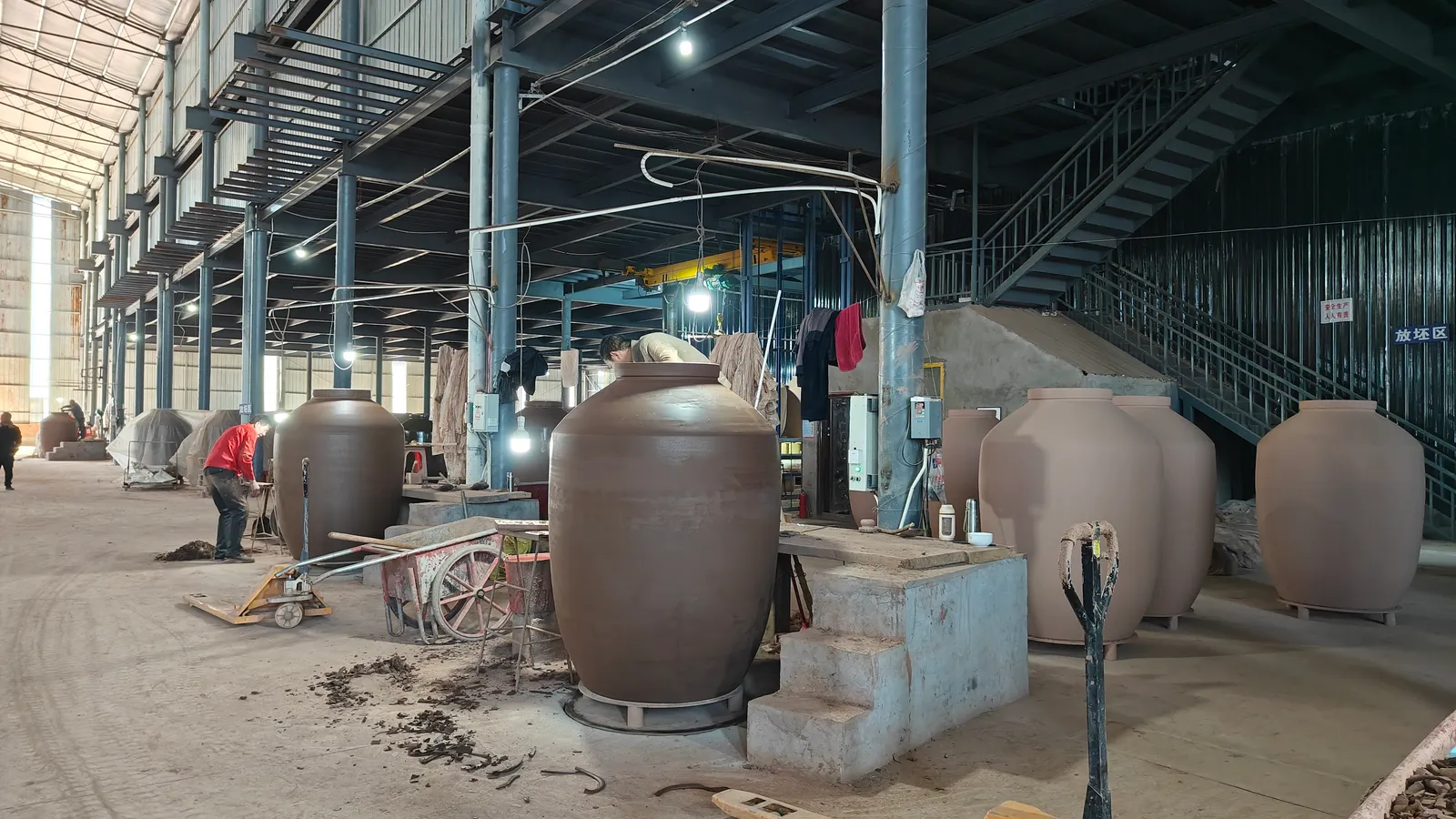

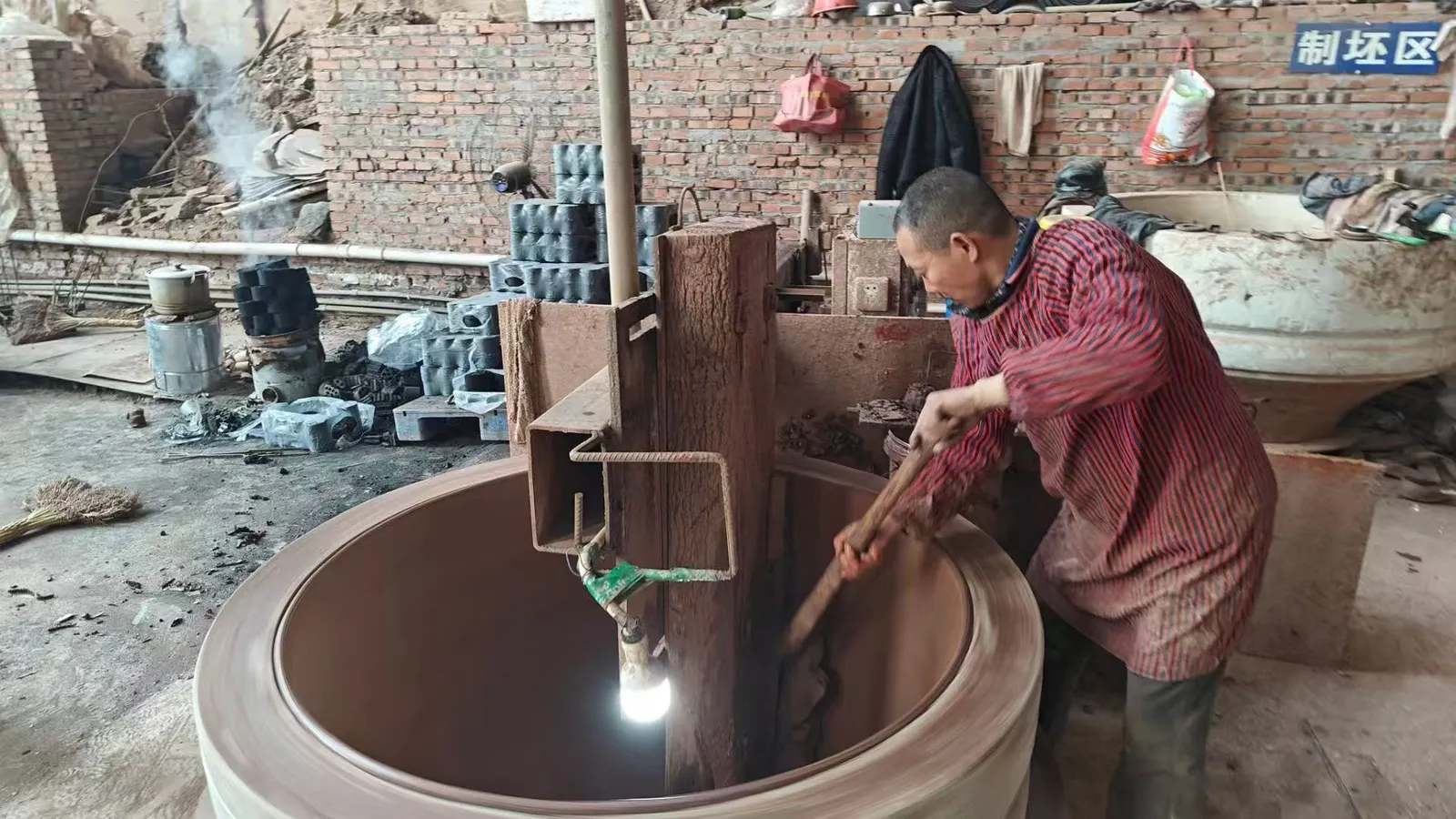

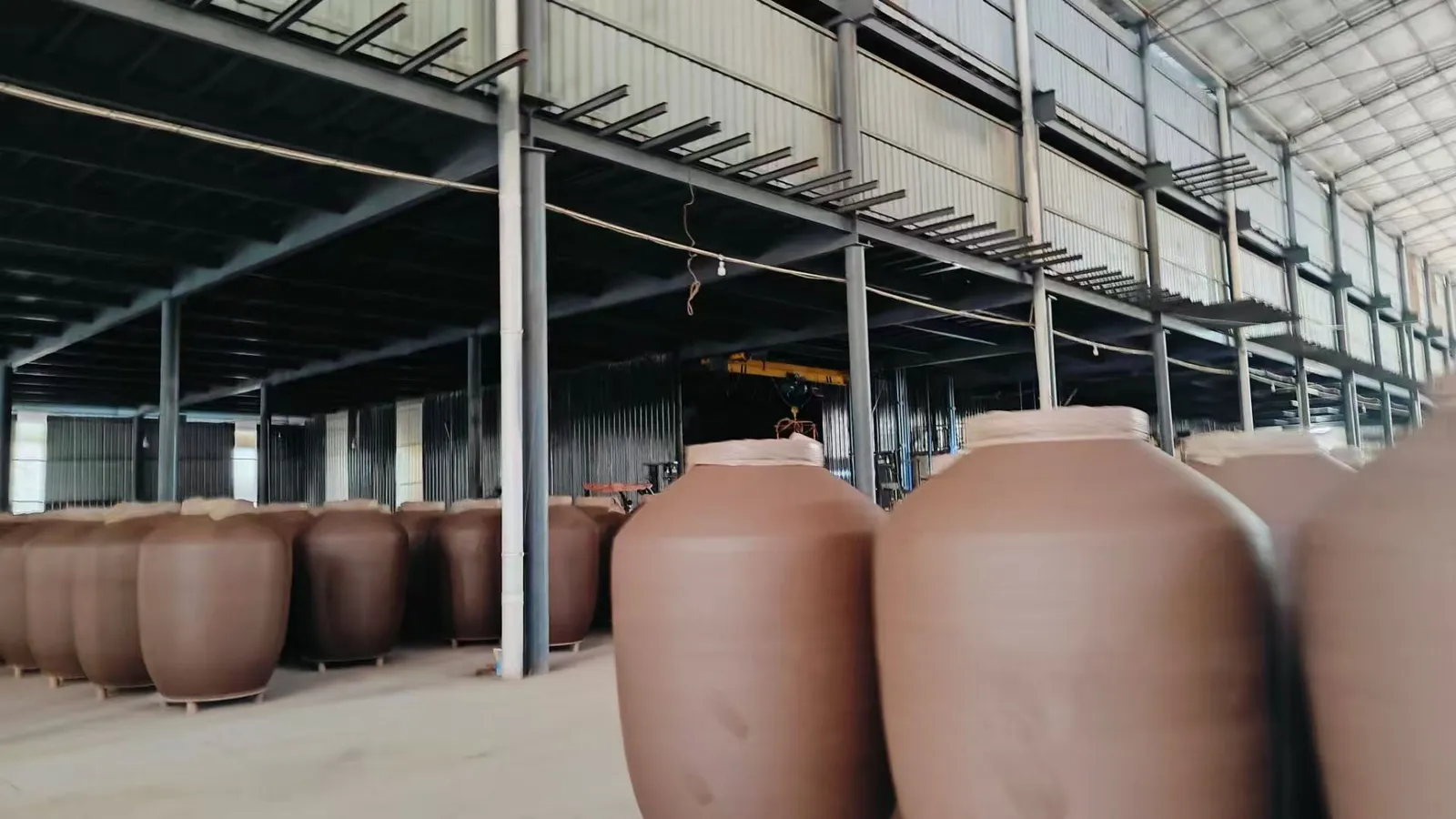

Craftsmanship Process

A perfect blend of traditional artistry and modern technology

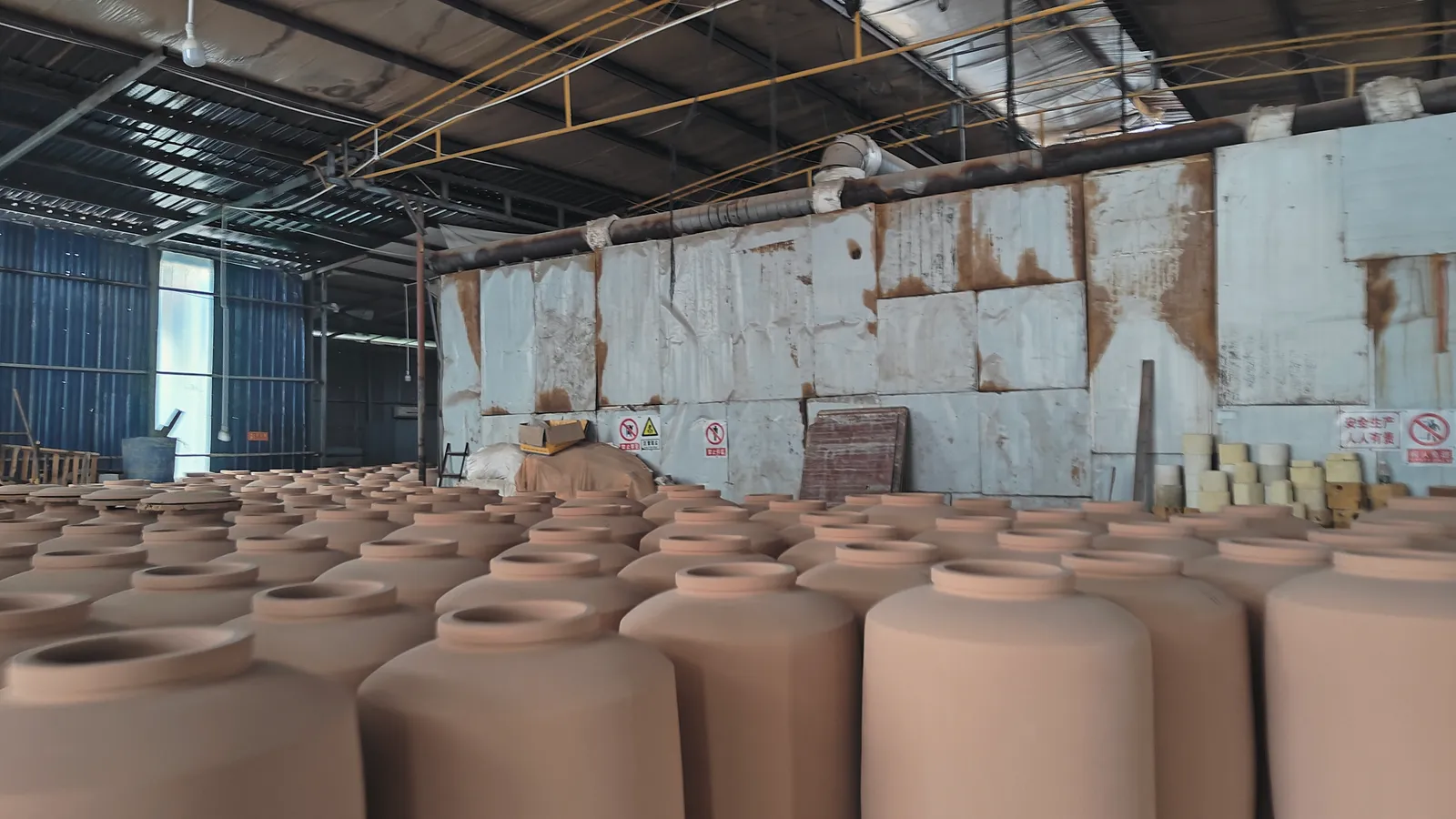

Craftsmanship process 1

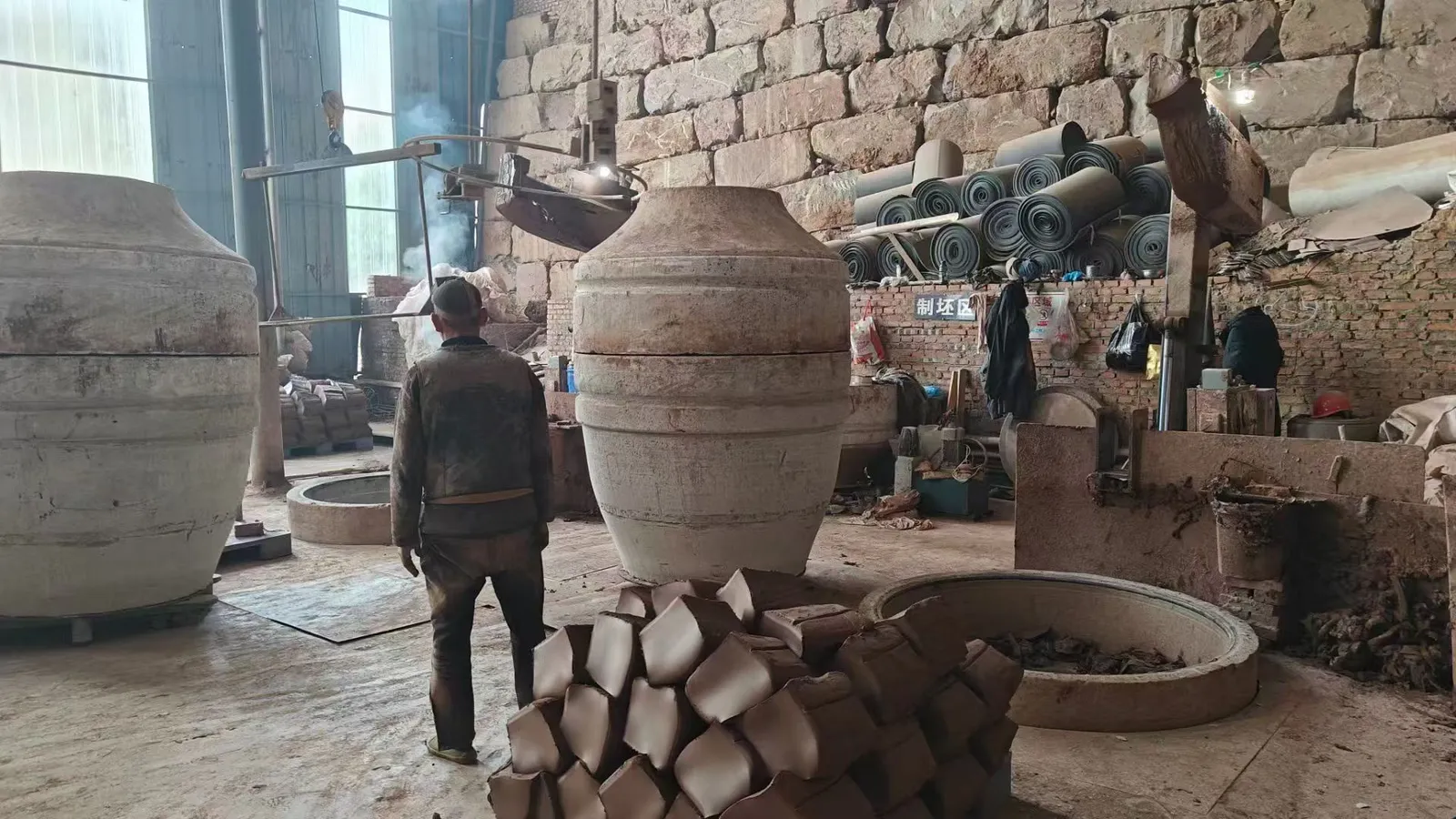

Craftsmanship process 2

Core Advantages

What sets our vessels apart

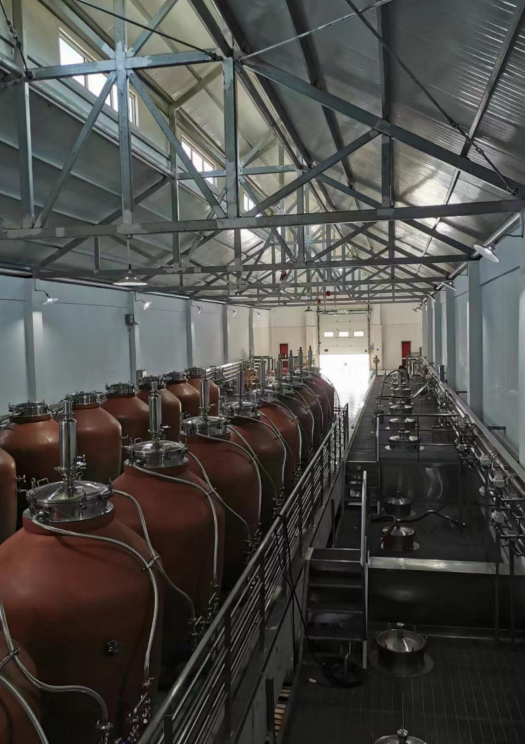

Background
01

Triple Protection Structure

Our proprietary top structure features a one-way valve, nitrogen protection, and a unique zero-oxygen water seal, delivering significantly longer freshness than conventional vessels.

02

Large Opening Design

Our larger discharge port simplifies fermentation operations. The enhanced ventilation effect allows interior moisture to dry within 2 hours, versus 48+ hours for conventional small-mouth designs, preventing bacterial growth.

03

Burgundy-Style Solution

For white wines, select vessels include automatic lees stirring. Combined with our oak stave program and suitable raw materials, achieve Burgundy-style white wines.

04

Mature Oak Program

Our refined oak stave aging approach preserves abundant fruit aromas while imparting oak barrel-like complexity. Oak staves can be removed without racking, preventing excessive oak flavor.

Product Showcase

Professional design, quality guaranteed

Advantage 1

Absolutely leak-proof

Our unique surface treatment ensures zero leakage, preventing wine residue stains from forming on the vessel surface.

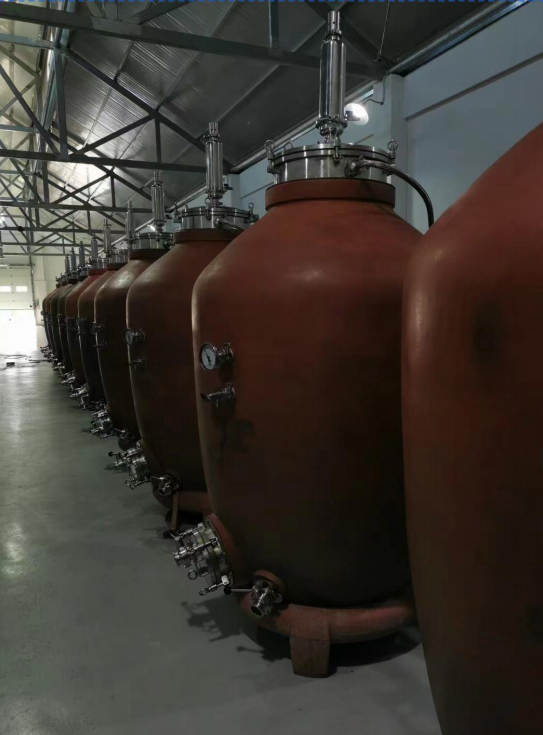

Advantage 2

Service Excellence

Recommended by the Winemakers Alliance

Dual-Purpose Design

Integrated fermentation and storage

Continuous Free Upgrades

Ongoing optimization and lifetime support

Products & Pricing

Product Display & Pricing

Spirits Aging Vessel

$1,200 Shipping to winery included

Spirits Aging Vessel

Free whisky-style seasoning program included

Professional seasoning craft to enhance spirit development and quality

Designed for spirits aging

Ideal for whisky, brandy, etc.

Premium clay material

Excellent breathability for aging

Precision temperature monitoring

Equipped with gauge & sampling valve

Superior seal

Minimized evaporation loss

Gen 1 - Non-Temperature Controlled

$1,700 Shipping to winery included

Gen 1 - Non-Temperature Controlled

Triple VA protection

Multi-layer defense

Oak stave hooks

Easy oak stave installation

Micro-oxygenation wall

Precise oxidation control

Bottom & side valves

Dual discharge system

Large manhole opening

Easy cleaning & maintenance

Optional lees stirrer

Add-on accessory

Temperature gauge & sampling

Monitoring & sampling

Gen 2 - Temperature Controlled

Gen 2 - Temperature Controlled

Basic

$2,100

Manual temperature control via internal coil heat exchange

Premium Recommended

$3,100

Automatic temperature control: internal coil for cooling, bottom heating for lees, promoting yeast autolysis

Cooling water inlet

Precision temperature system

Cooling water outlet

Circulation cooling design

Gen 3 - Temperature Controlled

Gen 3 - Temperature Controlled

Basic

$2,100

Manual temperature control via internal coil heat exchange

Premium Recommended

$3,100

Automatic temperature control: internal coil for cooling, bottom heating for lees, promoting yeast autolysis

Latest Generation

More optimized features, contact us for details

Pricing Notes

  • Above prices are for 1000L capacity; contact us for other sizes
  • Prices include shipping to your winery
  • One-year warranty with lifetime technical support

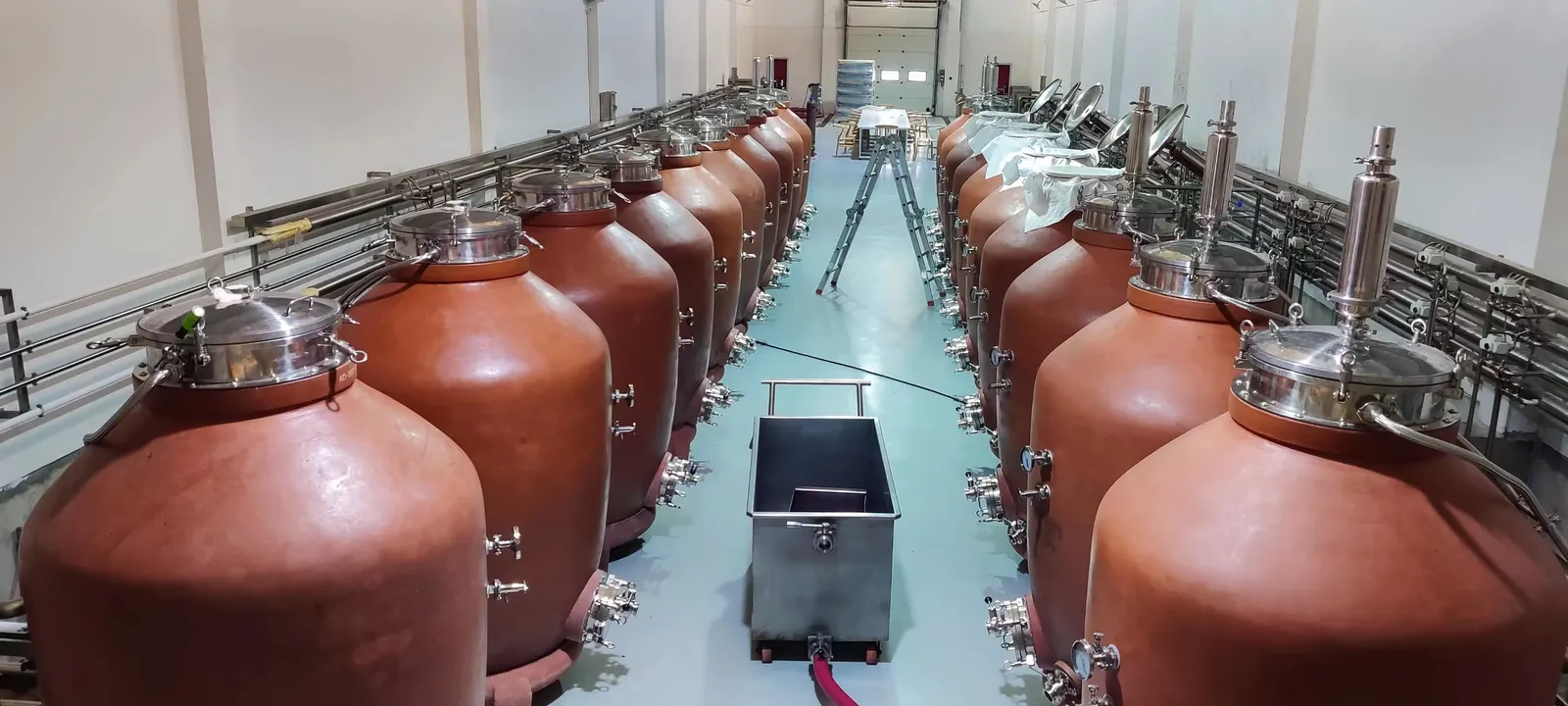

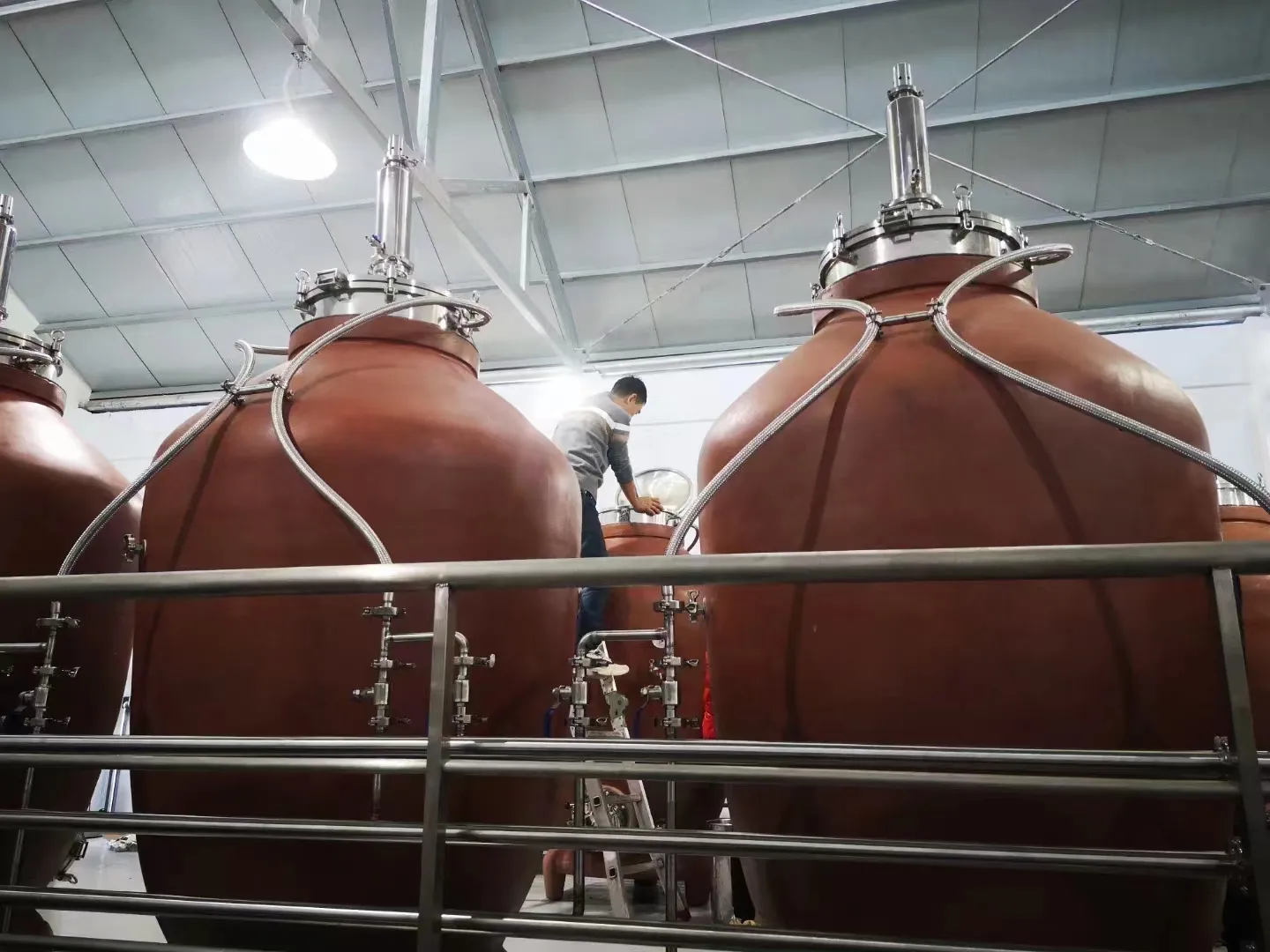

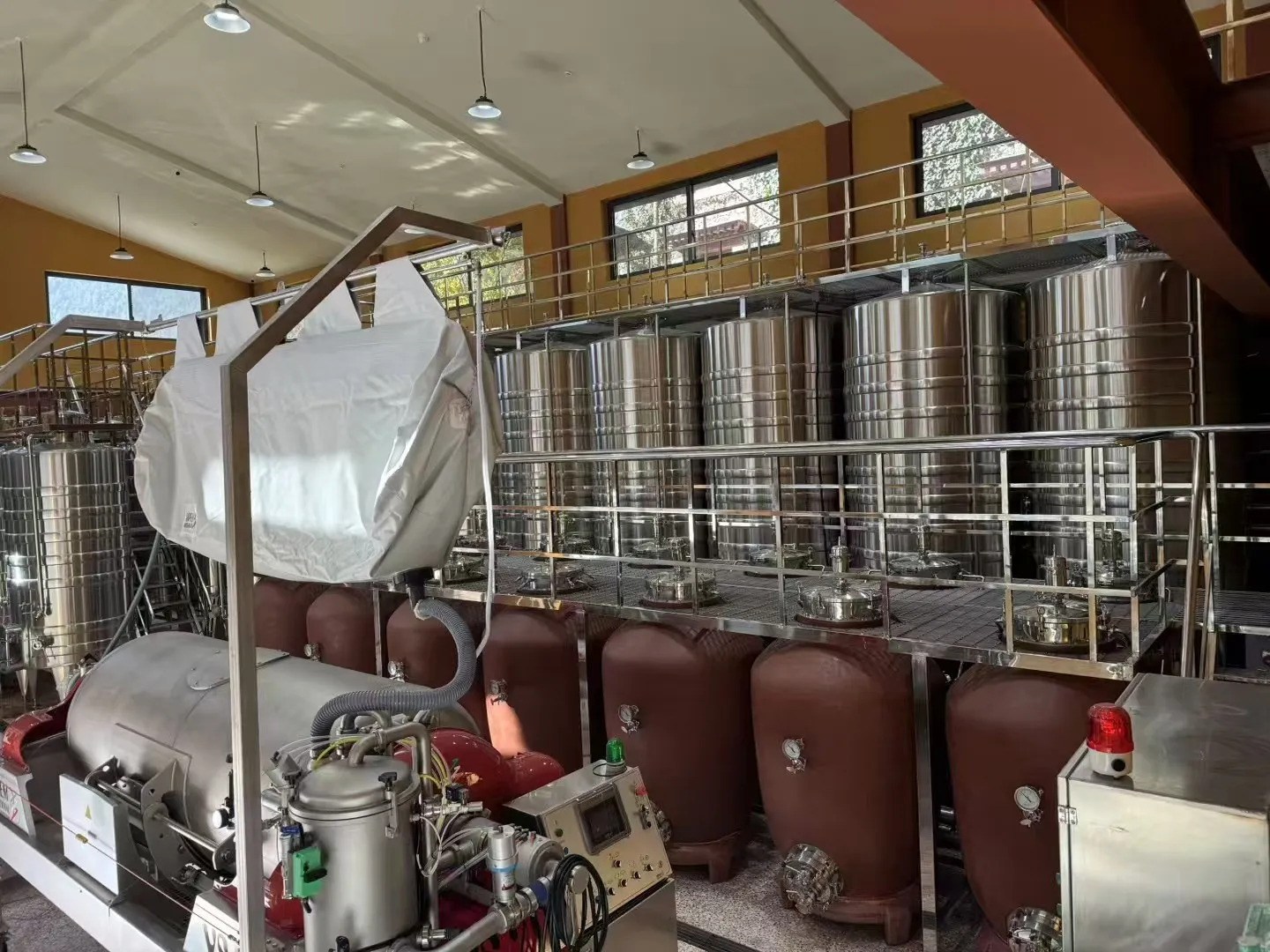

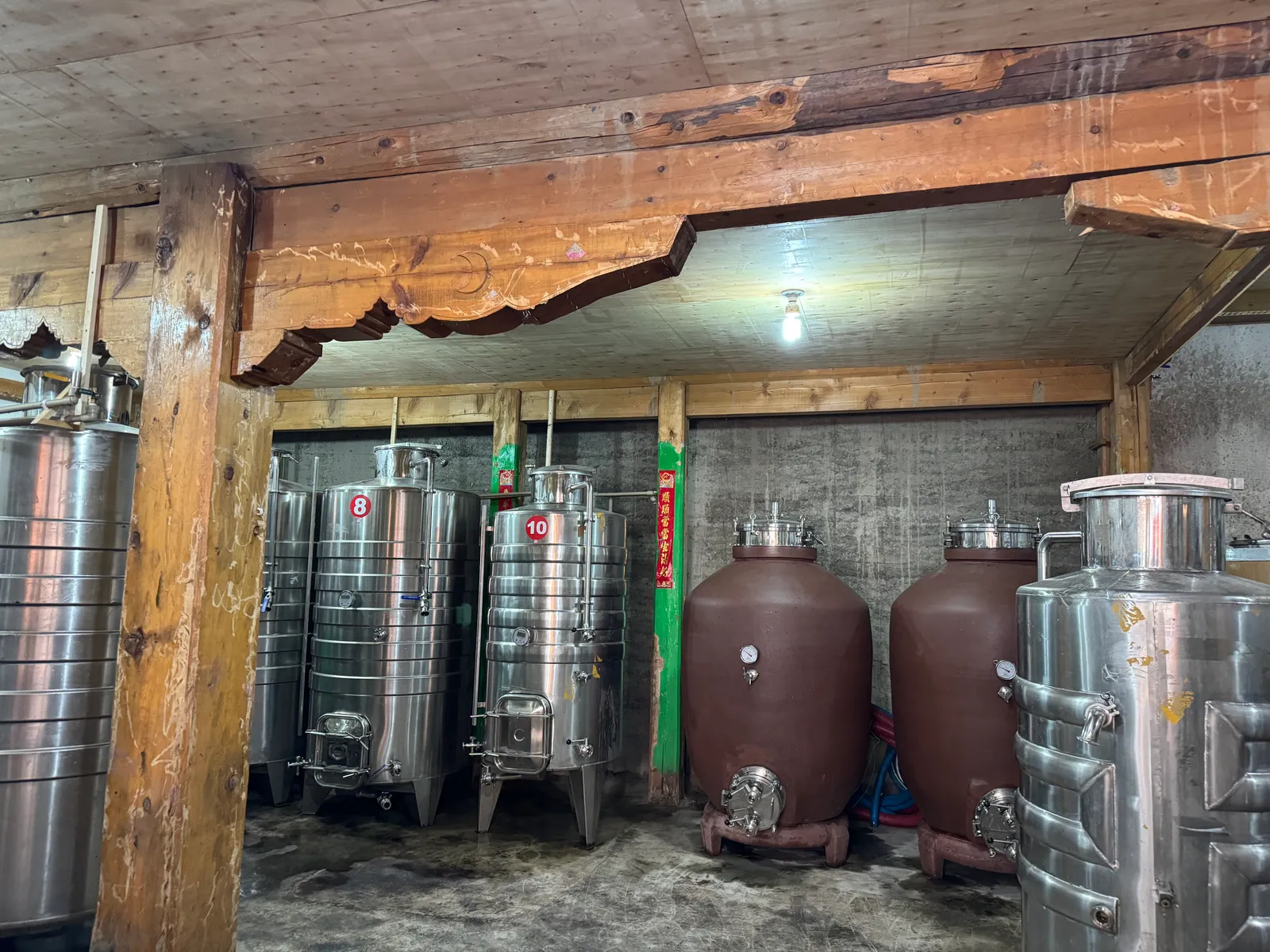

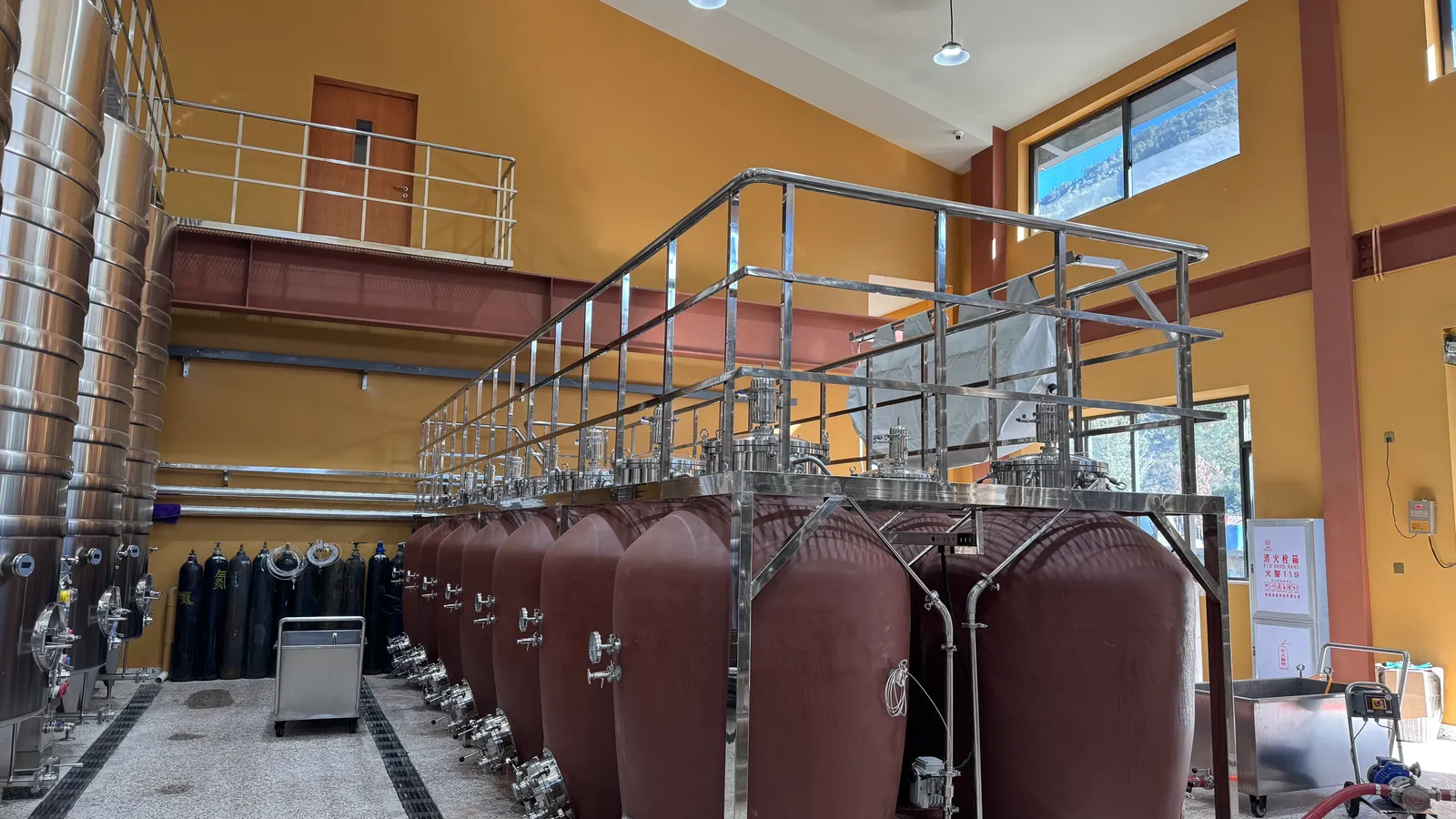

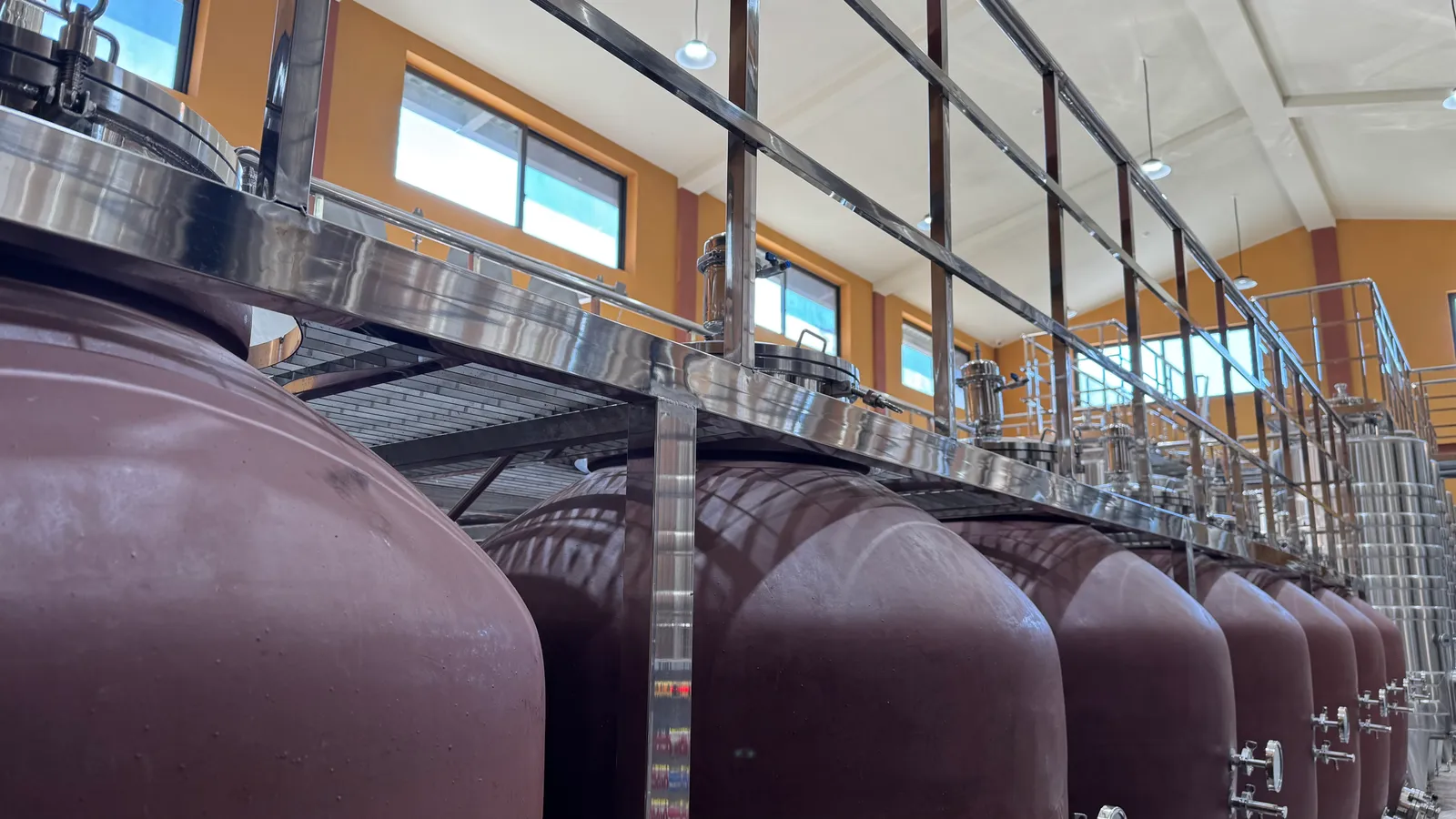

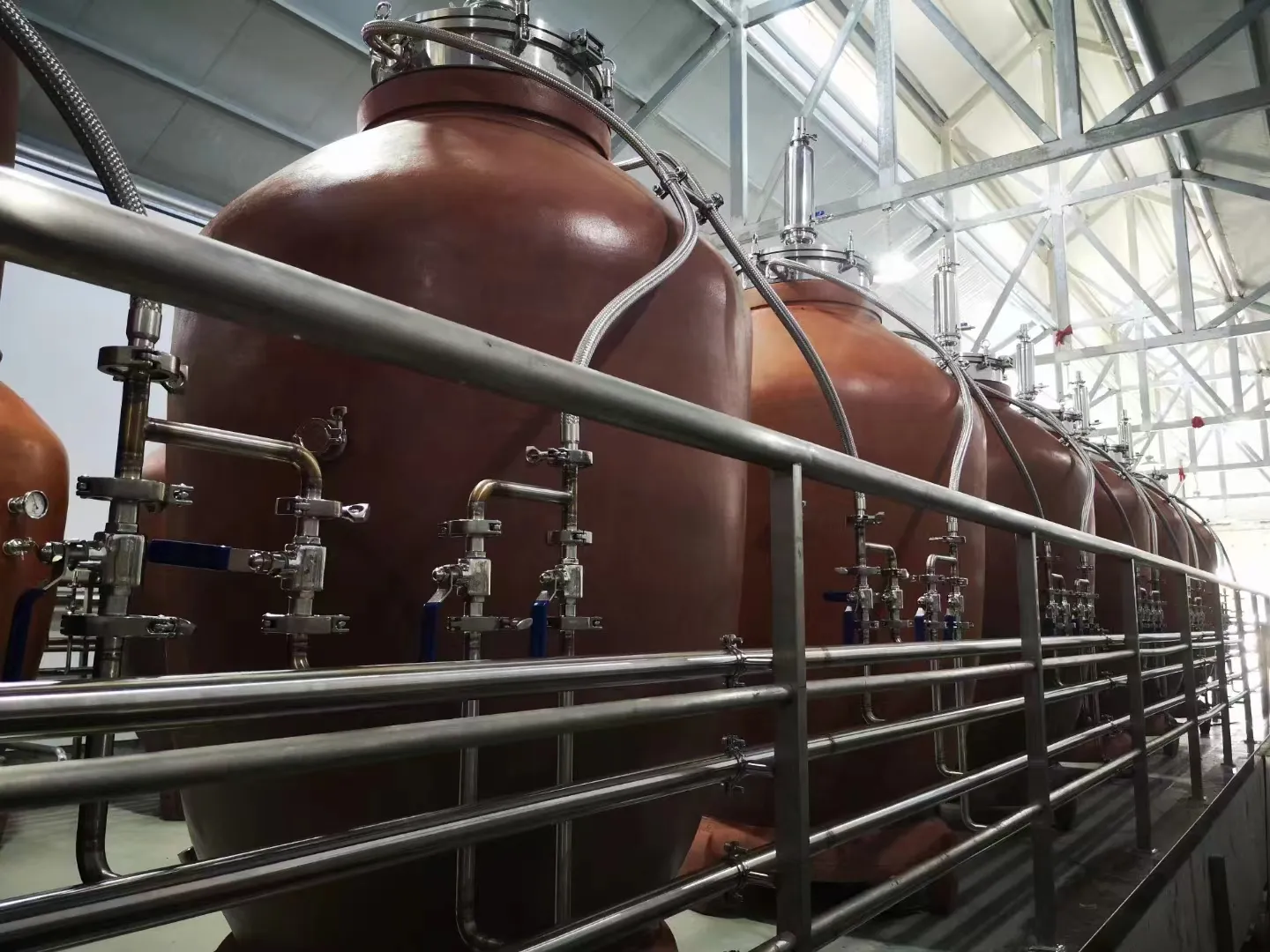

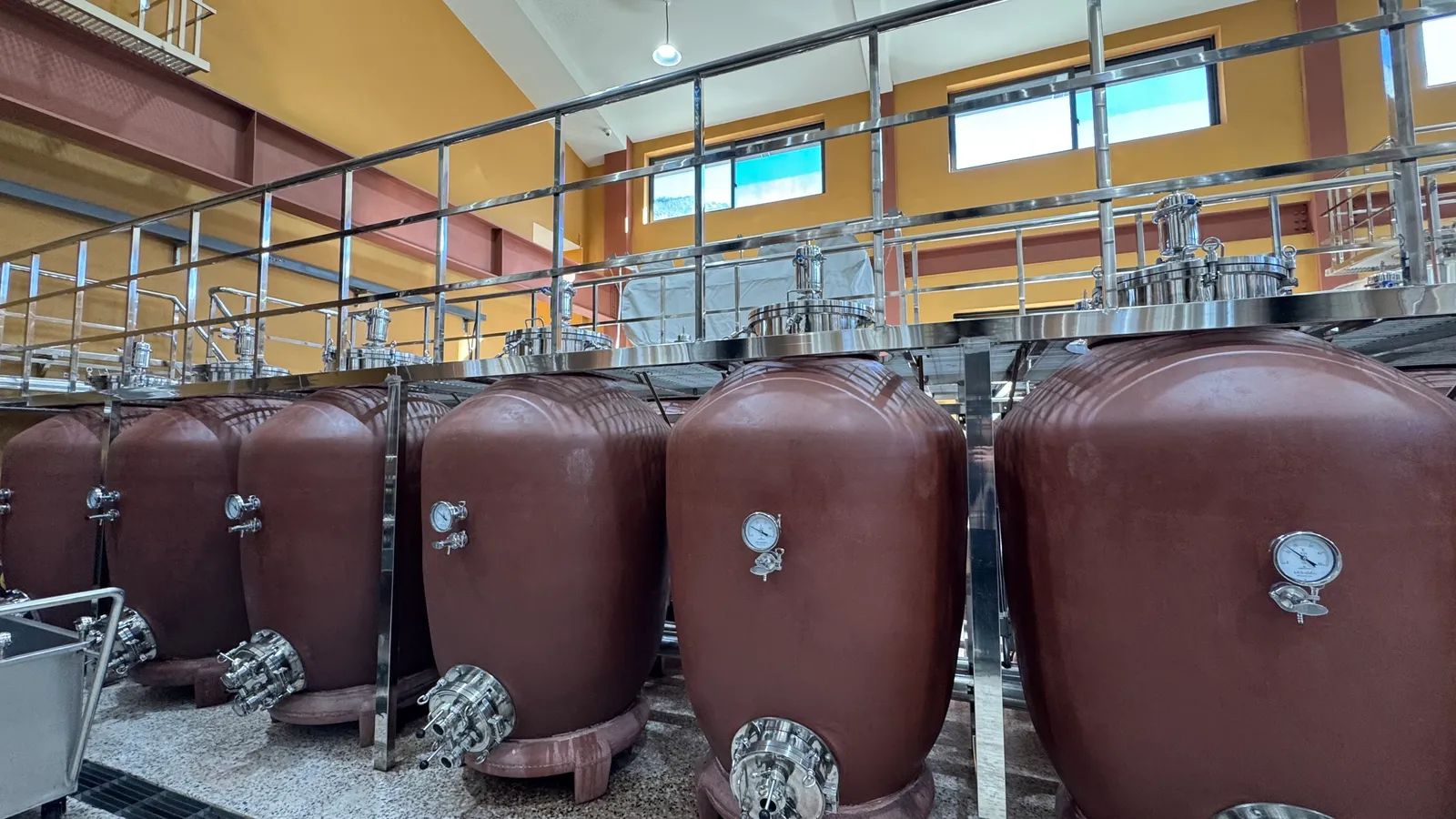

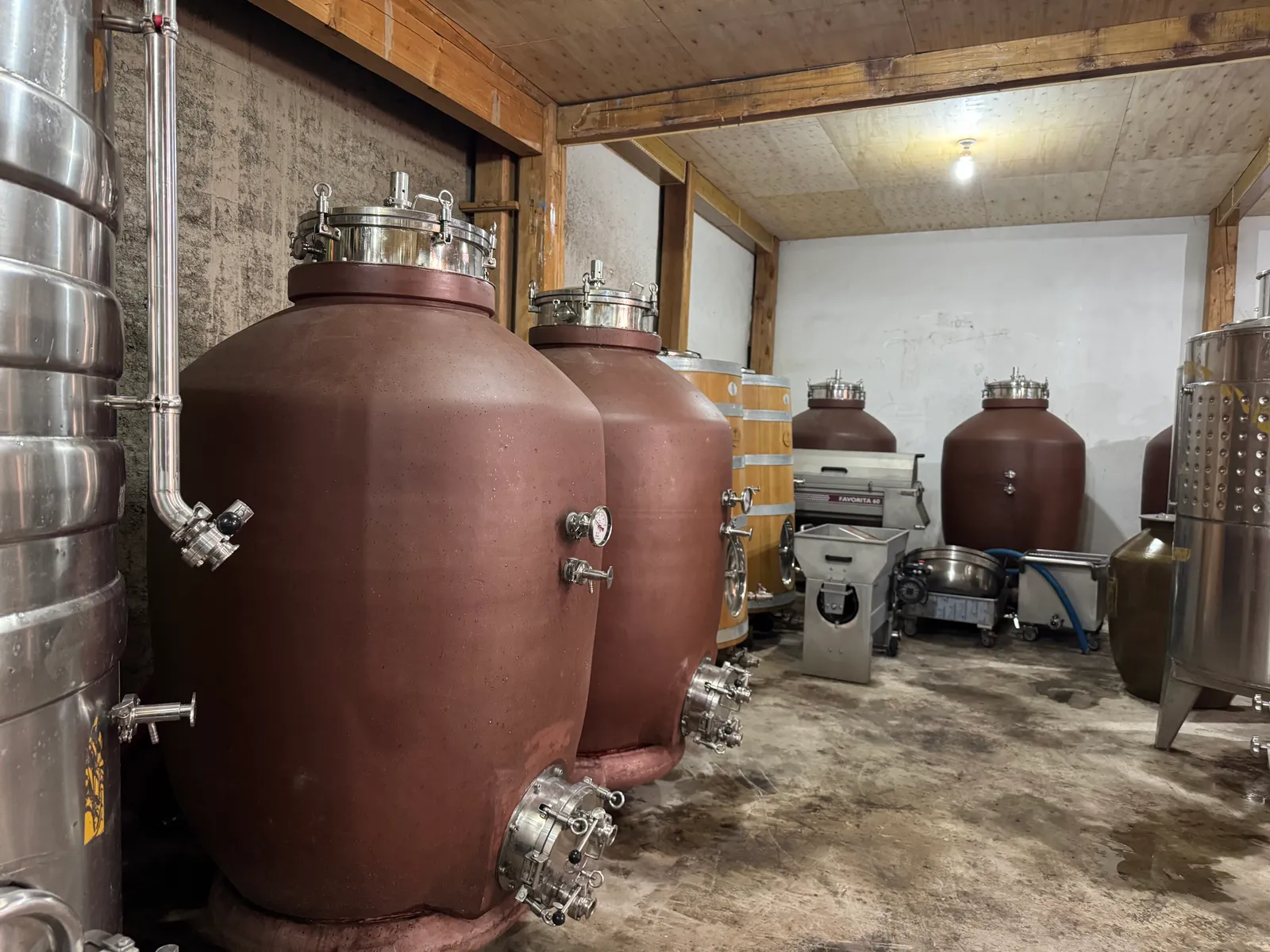

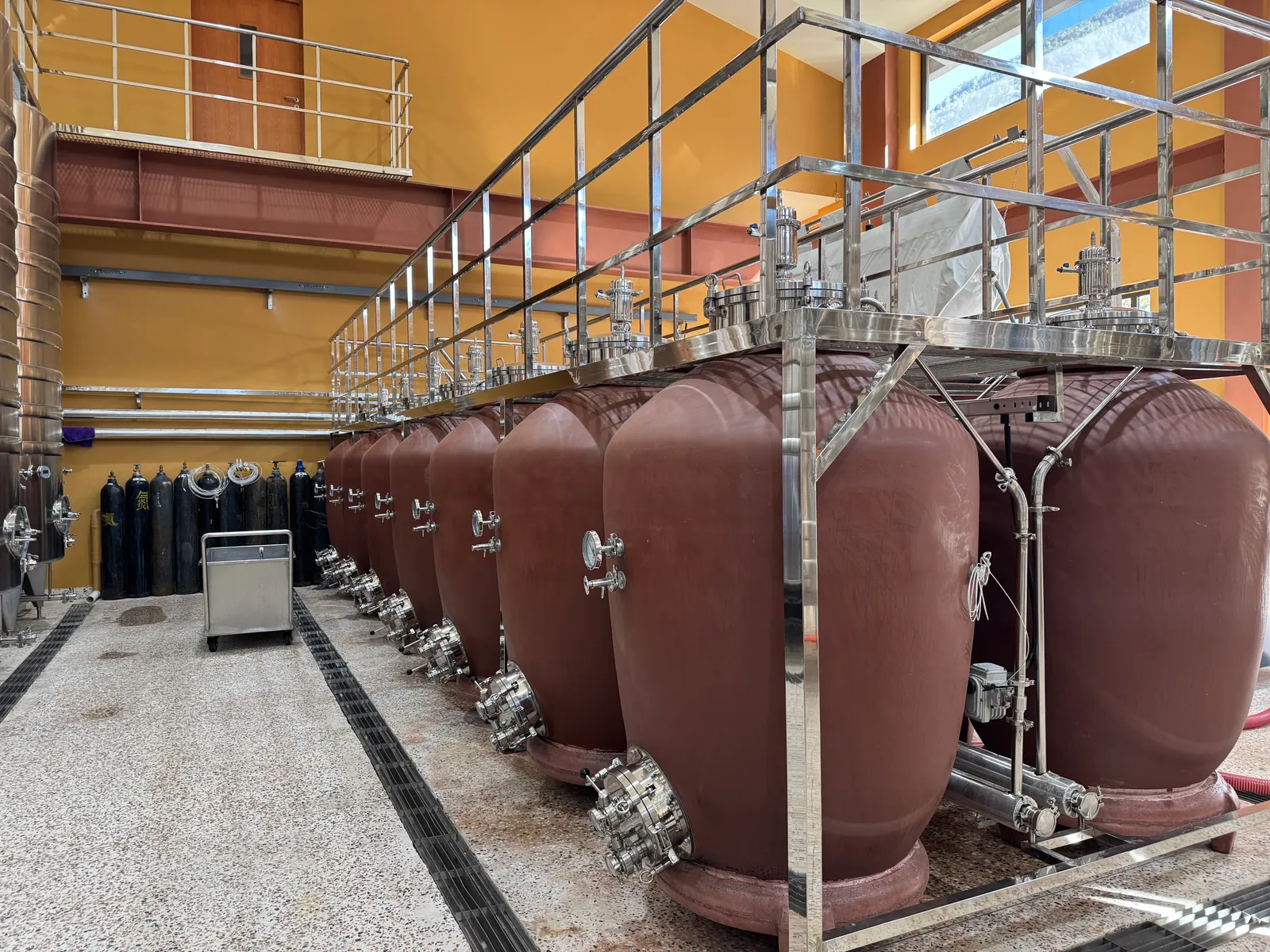

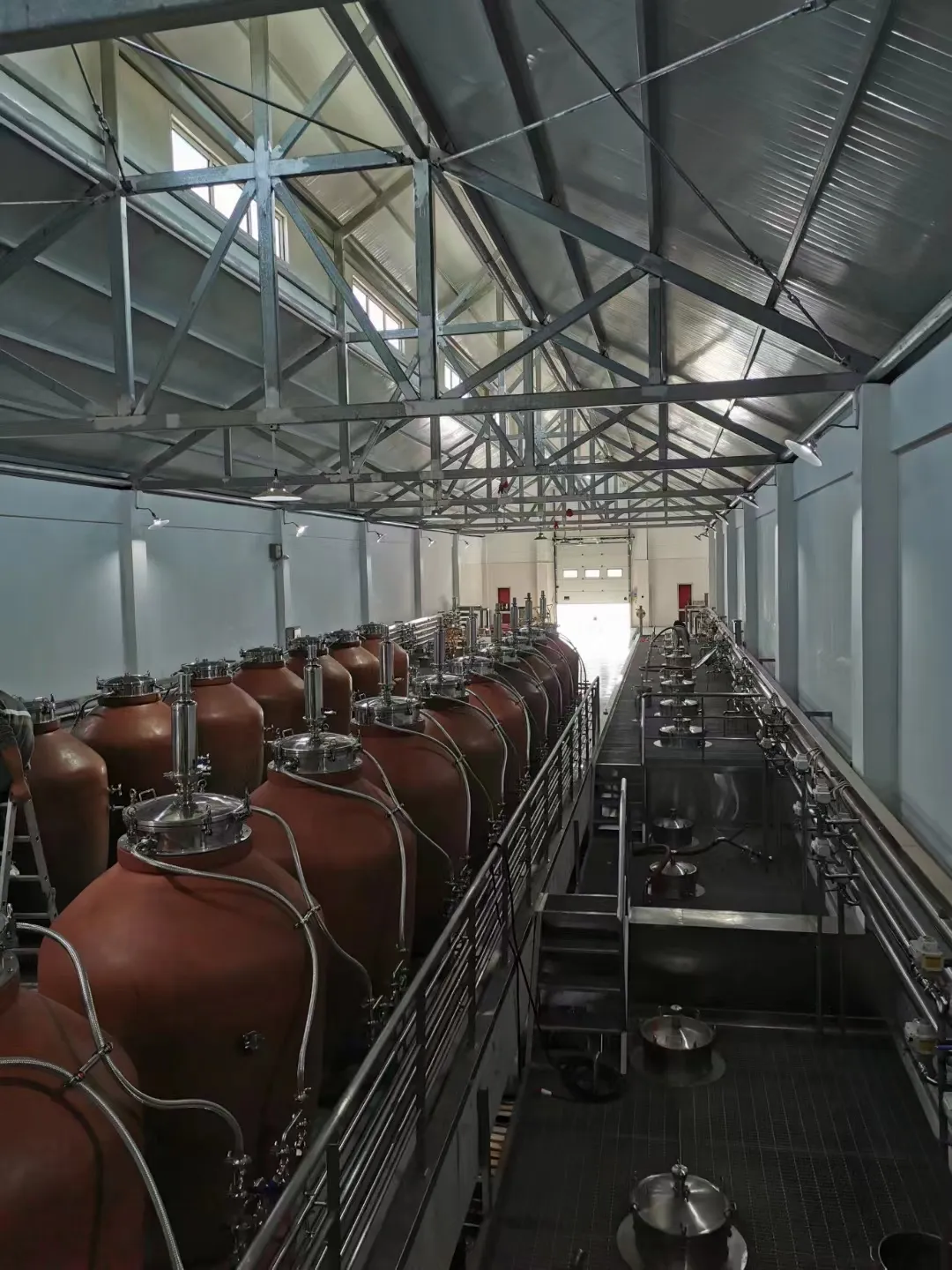

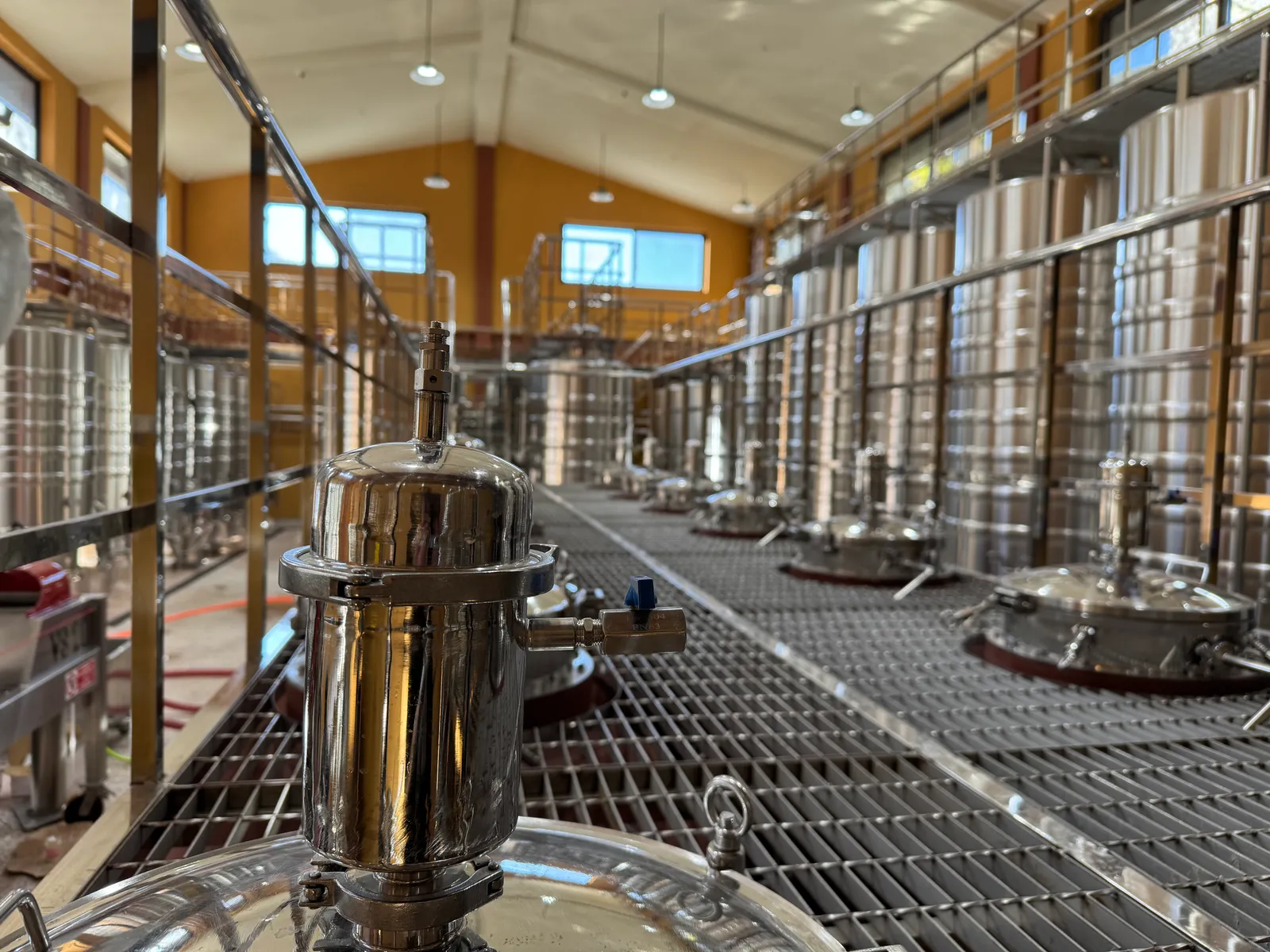

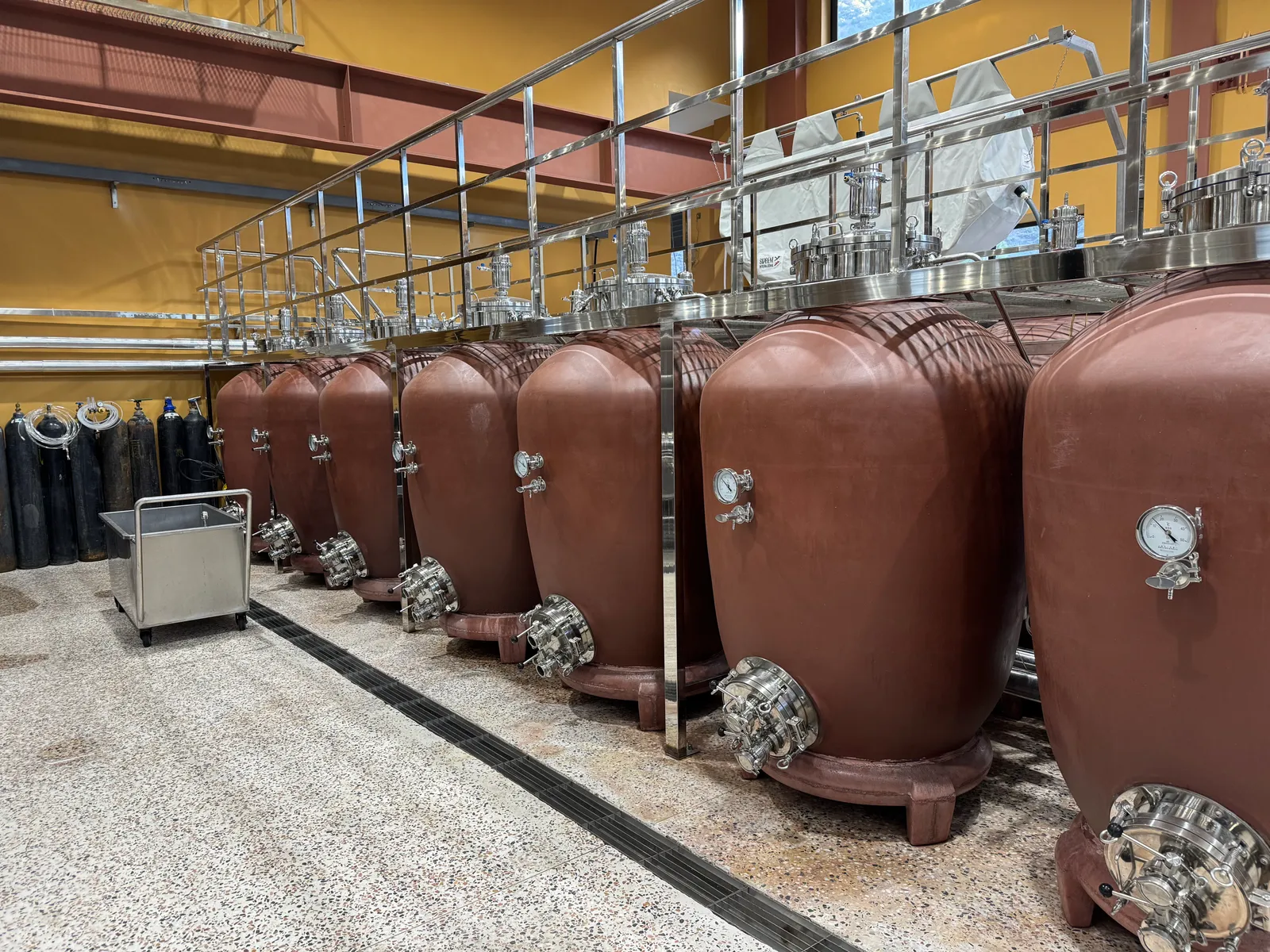

Success Stories

Our vessels are not just beautiful - they are practical and proven

Ningxia Wine Region

China's most promising wine region

Xia Mu Winery

Mei He Winery

Dan Lu Winery

Jiu Xi Winery

Pu Shang Winery

Xiao Pu Winery

Ting Yun Winery

Sichuan Wine Region

Exploring the infinite possibilities of highland terroir

Siguniang Mountain Winery, Xiaojin

Yunnan Wine Region

We understand high-altitude terroir better

Songtsam Winery, Cizhong

Hongpo Yitong Winery, Deqin

Shuiru Dadi (Rodi's Home), Deqin

International

Chinese clay vessels going global

Red Corner Estate, Yarra Valley, Australia

Chile (Project in Progress)

Traditional Clay Pot Limitations

  • Poor sealing leads to excess air, risking oxidation and volatile acidity increase
  • Water-sealed vessels cannot prevent air ingress from temperature-driven breathing
  • Inconvenient residue removal, clarification, and cleaning during fermentation
  • No temperature control, risking excessive higher alcohols from high fermentation temps
  • No base platform for easy mobility
  • Fired below 900°C, low strength, requiring external cement reinforcement

Chengjing Advantages

  • Dual-purpose fermentation and storage, maximizing winery space
  • Elegant purple-red tone transforms industrial equipment into winery aesthetics
  • Enables small-batch premium varietal production for discerning customers
  • Excellent oxygenation control combined with natural catalytic properties preserves maximum fruit aroma and refines tannin structure
  • Fired at 1150-1180°C, high strength with acid-resistant structure from iron mineral fusion with silicates

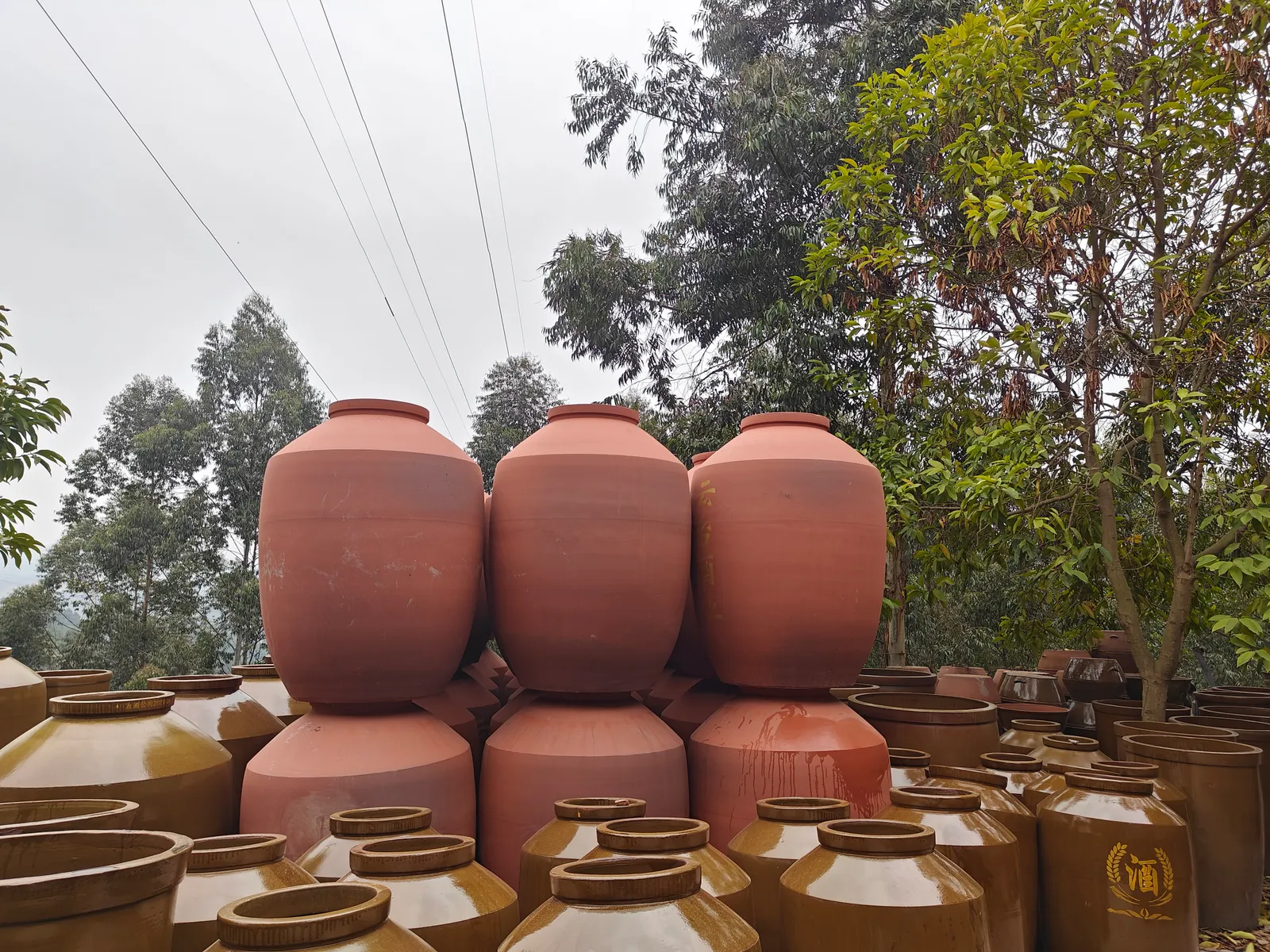

Pottery Is Our Tradition

Pottery Making is Our Tradition

Crafted in China, home to thousands of years of ceramic history, using locally-sourced special natural clay fired at high temperatures.

Due to the unique nature of ceramic, the forming process requires extensive handcraftsmanship.

At high temperatures, organic matter in the clay volatilizes, creating open pores that give our vessels their characteristic breathability.

High-Temperature Firing

1150-1180°C

Handcrafted

Millennia of tradition

Natural Materials

Special natural clay

Product Specifications

Product Specifications

Non-Temperature Controlled Vessel

  • 25cm discharge port design
  • Internal stainless steel coil
  • Ideal for aging

Temperature Controlled Vessel

  • Internal temperature control coil
  • Precision temperature system
  • Ideal for fermentation & aging

Available Capacities

350L

Small batch fermentation

500L

Mid-size winery

1000L

Large production

3000L

Commercial scale

Tailored to your needs

Request a Quote

Tell us about your needs and we'll get back to you promptly

Let's Work Together

We hope to work with you, using clay-fired brewing equipment from nature, to create exceptional wines that express the land.

Work together with you to make natural wine with clay-fired brewing equipment from nature.

Chengjing Ceramics Co., Ltd.

Rongchang District, Chongqing, China
